Transit Fiamma Awning High Roof F45S Model

$ 1,210.00

We are proud to offer the Fiamma awning for your Ford Transit high roof van, conversion van or RV. Our awnings come complete and ready to install, with brackets for mounting included in the price. The F45S is a side mount awning which will mount to the vertical surface of your van. Please check your available area and compare it to lengths provided below before ordering. We also have the Transit awning bracket instructions and F45S instructions available for download below.  Drilling is required.

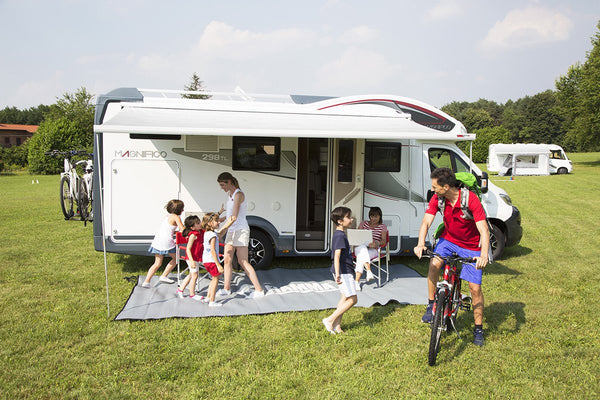

This is the company that invented the case style awning. Light weight and easy to use, you can double your usable space in less than a minute with the Fiamma awning for your Transit. They also help cool the interior. Makes a great space for sitting on hot days or as a staging area for gear. The case is an aerodynamic design and the fabric is rot proof, waterproof, UV and fade resistant. All seams in the fabric are welded rather than sewn and you can wash the fabric as well as roll it up damp. Fiamma has 30 years of awning building experience and is the campers choice.

Technical Specifications:

The 3.0 meter awning - 10 feet 1 inches wide - 8 feet 2 inches extended out - 51 lbs - all mounting hardware included. Does not come with extra rafter.

The 3.5 meter awning - 11 feet 6 inches wide - 8 feet 2 inches extended out - 55 lbs -  all mounting hardware included. Does not come with extra rafter.

All F45S awnings can be upgraded to be a power awning before or after you purchase, with the electric motor kit. Click here for the electric motor kit to make your F45S awning a power awning.

Click here for awning light options

Click here to download Transit F45S awning mounting bracket instructions.

Click here to download general user guide for the F45S awning.

You can find the optional Rafter Kit by clicking here.

  • Drilling required
  • Modifications may be necessary for the mounting

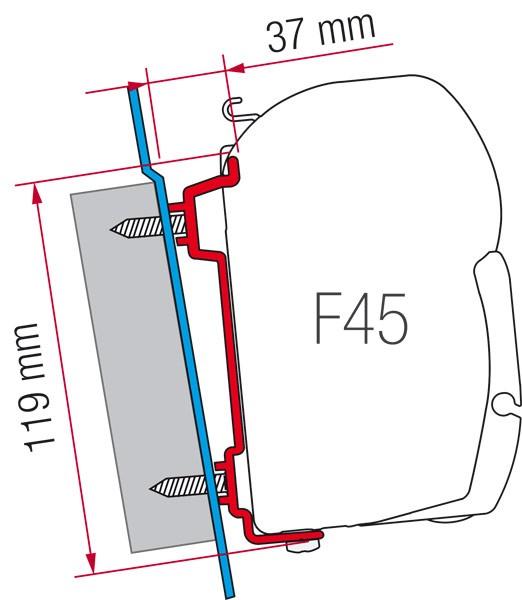

  • Comes with either Transit specific brackets or flat mount (roof rack brackets)
  • Royal Gray is the standard fabric color - all other colors are special order

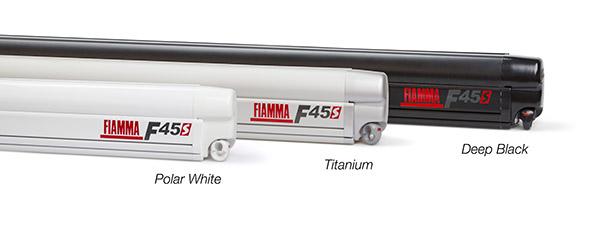

  • 3 Case Colors, Polar White, Deep Black, Titanium
  • In case of light to moderate rains, install the center rafter, lower one leg and raise the other to allow for water runoff. If it is raining hard enough for water to pool on the fabric, roll it in. Do not allow the fabric to become stretched
  • Optional Rafter Kit is available to help reduce pooling in light rain and mild wind noise
  • Takes approximately 1-2 weeks for delivery

Shipping is $199 truck freight and a business address is strongly recommended but not required - you will responsible for unloading and receiving the awning. If you choose to ship to a residential address you must have truck access and turn around (big truck). If they cannot get a big rig turned around they will take it to the nearest hub, where you will have to pick it up. Additional freight charges could apply if delivered and held at a hub.

All warranties are manufactures warranties

Fiamma end user warranty
