Fiamma Awning F45S Flat Wall Mount

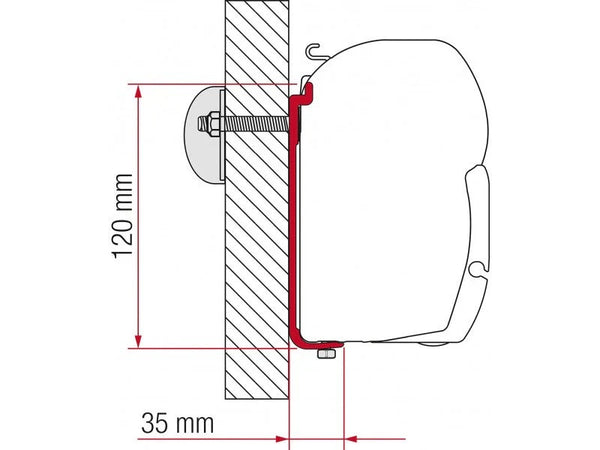

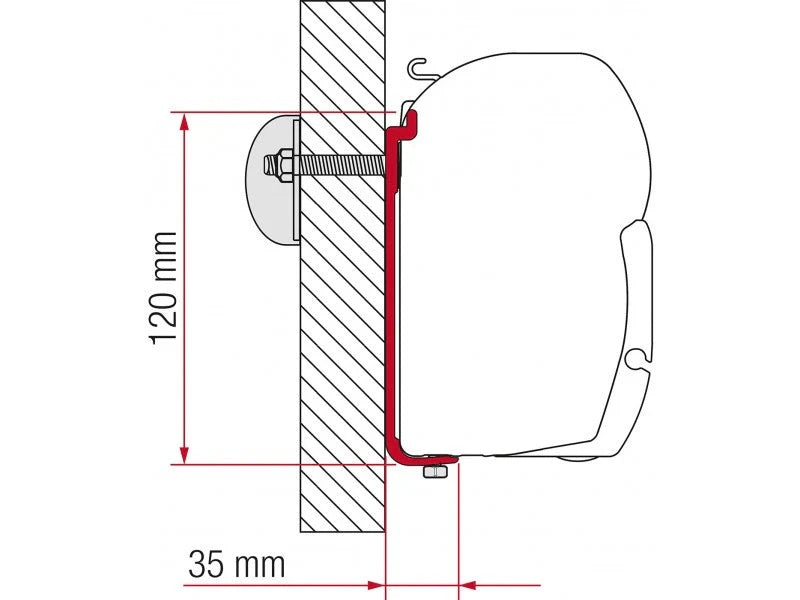

We are proud to offer Fiamma awnings. This is the F45S flat mount or wall mount awning with hand crank and support legs. Out of the box it is ready to flat mount to any surface where you have enough space - flat mount brackets are included. This makes a great awning for Class C RV's and vehicles with a roof rack that has a flat surface. Many add on accessories are also available for this awning.
The easy-to-use and simple to install awning which joins todays best technologies, service and quality! Constantly renewed, the F45s awning is compact and functional, making it the best choice for your van and RV travel! When not in use, the F45s takes up little space while snuggly enclosed in its aluminium case. It is sturdy and safe to operate, with an easy-to-hook winch loop.
Size Specifications:
The 1.9 meter awning - 6 feet 1 inches wide - 3 feet 5 inches extended out - flat mounting hardware included. Does not come with extra rafter.
The 2.6 meter awning - 8 feet 8 inches wide - 6 feet 6 inches extended out - flat mounting hardware included. Does not come with extra rafter.
The 3.0 meter awning - 10 feet 1 inches wide - 8 feet 2 inches extended out - 51 lbs? - flat mounting hardware included. Does not come with extra rafter.
The 3.5 meter awning - 11 feet 6 inches wide - 8 feet 2 inches extended out - 55 lbs? - flat mounting hardware included. Does not come with extra rafter.
The 4.0 meter awning - 13 feet 1 inches wide - 8 feet 2 inches extended out - flat mounting hardware included. Rafter included.
The 4.5 meter awning - 14 feet 8 inches wide - 8 feet 2 inches extended out - flat mounting hardware included. Rafter included.
All F45S awnings can be upgraded to be a power awning before or after you purchase, with the electric motor kit.
Click here for the electric motor kit to make your F45S awning a power awning.
Click here for awning light options.
You can find the optional Rafter Kit by clicking here.
Click here to download Transit F45S awning mounting bracket instructions.
Click here to download general user guide for the F45S awning.
Features
Colors: Royal Gray is the standard fabric color - all other colors are special order, 3 Case Colors, Polar White, Deep Black, Titanium - not all case color available for all sizes
Installation Brackets: standard adapters (provided with the awning) and more than 90 personalized brackets enable the mounting on special profiles - please inquire.
Perfect Closing: fast and silent opening and closing thanks to the Auto-Lock safety system and perfect closing thanks to Dual Security device
Presto Fix: adjusting system that enables you to gauge the closing of the lead bar to guarantee a perfect closing over time
One Way Roll: rolling the fabric only in the correct direction, thanks to Fiamma's patented system
Dual Shock Absorber: patented shock absorbing bracket with dual bolt system to protect the awning and the vehicle during bad weather
Extra Strong Arms: strong reinforced articulated arms with double steel cable that allows you to maintain an optimal fabric tension
Secure Lock: the legs can be fixed to the ground or to the wall and the height of the lead bar can be adjusted with a telescopic safe and practical system
- Drilling required
- Modifications may be necessary for the mounting especially if installing on a roof rack
- In case of light to moderate rains, install the center rafter, lower one leg and raise the other to allow for water runoff. If it is raining hard enough for water to pool on the fabric, roll it in. Do not allow the fabric to become stretched
- Optional Rafter Kit is available to help reduce pooling in light rain and mild wind noise
- Takes approximately 1-2 weeks for delivery
Shipping prices- these are what we actually pay or under what we pay in many cases.
Shipping is $175 truck freight to AL, AR, DE, FL, GA, IL, IA, MD, MO, MS, NC, OK, SC, TN, TX, VA, WI, KS, KY, and LA.
250.00 to CO, CT, IN, MN, ME, MA, MI, NE, NH, NJ, NM, ND, OH, PA, RI, SD, VT, WV, and WY.
325.00 to OR, WA, CA, AZ, UT, ID, MT, NV, and NY.
Discounted shipping
A business address is recommended and we will offer a 50.00 discount on shipping to a business address - ask a friend. You will be responsible for unloading and receiving the awning. If the driver has to wait, additional fees can apply. Call for Canada, AK and HI. Pick up is available at most major city hubs and free pick up is available in Orlando FL.
If you choose to ship to a residential address you must have truck access and turn around (big truck). If they cannot get a big rig turned around they will take it to the nearest hub, where you will have to pick it up. Additional freight charges could apply if delivered and held at a hub.
All warranties are manufactures' warranties
